NEXCOM’s All-in-one digital signage (PDSP Series) incorporates a 16:9 LCD touch screen panel computer, with PowerDigiS Digital Signage Software making it the perfect “digital signage ready” solution for the Self Service applications. The front panel with touch screen is IP-65 compliant and is therefore resistant to water and dust. PDSP Series has a VGA interface enabling customers to link to an additional external display. For dual display with two identical panels, PDSP Series can drive the second MPPD 2200T LCD display. The PDSP Series is available in various different LCD sizes including 8.9″, 21.6″ and 37″ with resolutions up to 1920 x 1080 (Full HD). Other features include built-in dual Ethernet and optional WiFi module and slim line x86 based touch terminal. Designed for an extended number of applications the PDSP Series can be utilized as a thin client computer or within in-vehicle systems, mobile digital signage, and digitalized home and POS / Kiosk terminals.?
Single Engine, Dual Displays & Unified Outlook
PDSP Series is Widescreen Flat Panel PC that delivers an affordable solution for signage solutions.
PDSP Series format allows the uses to run multiple applications on a single or dual screen, helping to achieve greater efficiency and time management.
Outstanding screen performance
• Fast response time helps prevent smearing and ghosting.
– 5.8ms max.
• High contrast ratio resulting in excellent color accuracy and uniformity.
– 1000:1 typical
• High Resolution provides excellent entertainment and multimedia
experience.
– 1920 x 1080 resolution
Outstanding outlook
• Thin Frame: 15mm
• Slim type: 55.1mm with 2.5″ HDD and compact flash
• The same outlook for the second LCD Display (MPPD 2200T)
Main Features
• Multimedia: 16:9 Panel from 8.9″ PDSP 0810, 21.6″ PDSP 2210 and 37″ PDSP 3710
• Content Focus: PDSP Series has thin metal frame
• Fan-less System: Atom™ N270 platform with 1GB DDR2
• Front Panel IP65 proof (PDSP Series).
• 2nd display via VGA port
• 2 x GbE / 2 x USB / Line-out / 1 x Mini-PCIe / 1 x Mini-PCI
• Support 2.5″ SATA HDD
• COM1 RS232 / 422 / 485
• COM2 RS232 / 422 / 485 (PDSP 0810 only)
• Vibration / Shock resistant
Applications
Specifically designed for digital signage in self service applications, the totally fan-less design makes it perfect for the 24/7 operation in applications of retails, hospitality, medical and banking environments. To address a wide variety of digital signage application requirements, PDSP Series incorporates an extra video decoder module for playing 1080P (Full HD) video.

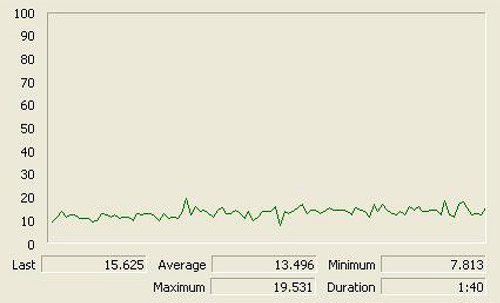

With video decoder module embedded in the PDSP Series system, the CPU loading will be under 20%. This makes PDSP Series available for three zones in one display, 1080p video, flash and scrolling text.
Source: NEXCOM
